PRODUCTS

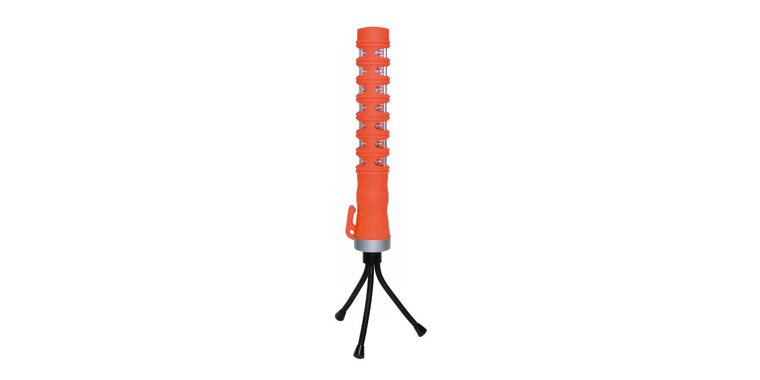

VC-608-3P * 5 types of Flash patterns
* LI battery in recharge series capacity: 700mAH/3.7V
* AC charger: input voltage 100-240V, output voltage: 5.5V, out put electricity 450MA
  Car charger: input voltage 12-24V, output voltage: 5.5V, output electricity 450MA


* LEDs Qty: 15pcs
* LEDs color: Red, amber, yellow
* Product size: 27.2*4.2-4.5cm
* Materials: PC, TPE
* Packing info: 37*35*37CM/CTN
  15PCS/5SETS/CTN, GW: 12KGS


* OPERATION:
    Press the ON/OFF BUTTON on each flare to rotate through the following 5 light patterns:
*  Flash patterns:
     #1-Rotate
     #2-Ouad Flash
     #3-Alternating Blinks
     #4-SOS Rescue (Morse Code)
     #5-Steady on - high
     #6-Off
* LI battery in recharge series capacity: 700mAH/3.7V
* AC charger: input voltage 100-240V, output voltage: 5.5V, out put electricity 450MA
     Car charger: input voltage 12-24V, output voltage: 5.5V, output electricity 450MA
* Step of charging:
   1> Put the light on ground, back side is upturned.

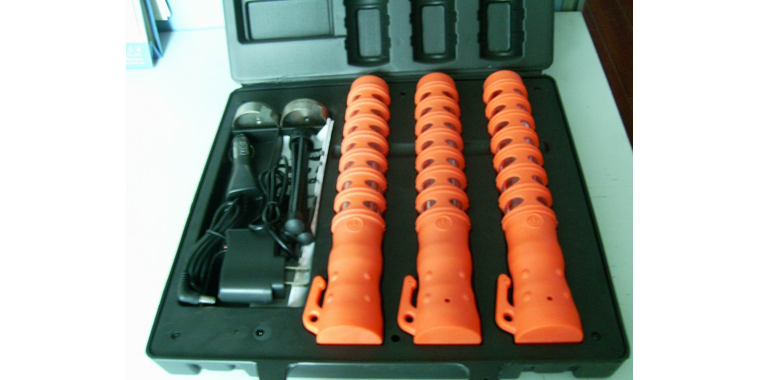

   2> Take out the ellipse charger, put the charger onto the light as photo shows below, there has a + and mark on both of light and charger, face + to + and to -.
   3> Connect the USB wire with the ellipse charger, now you can charger the light through the computer USB plug.
   4> If you want to charger the light through AC, please connect the AC charger.
   5> If you want to charger the light through CAR Plug, take out the AC charger and connect the CAR charger instead.
      When it is succeed charging, the light on ellipse charger is GREEN, and when it is full charger, the light on ellipse will turn RED.
*  Note:The stand-by charging feature allows flares to be kept plugged in when not in use without damage to the battery or unit. Ensures the flares will be charged and ready for use when needed. Flares will keep a full charge for 90 days.
