PRODUCTS

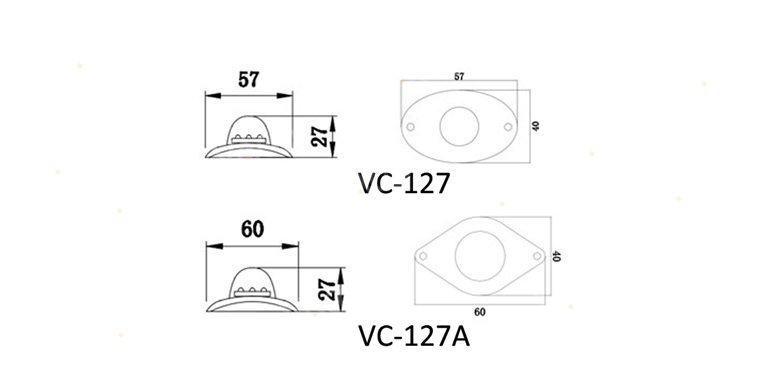

VC-127 * Operating voltage: 12 VDC
* Light source: 6pcs 3W Gen3 LEDs
* LEDs colors: amber, blue, red, white
* 18 self-contained flash patterns
* Water-resistant IP68


* Operating voltage: 12 VDC
* Light source: 6pcs 3W Gen3 LEDs
* LEDs colors: amber, blue, red, white
* Power: 9.24W
* Base shape optional: oval or rhombus
* 18 self-contained flash patterns, split and solid alternating flash patterns
* Water-resistant IP68
* Durable housing protects against moisture and vibration
* 100,000 hours life span


Wiring of the LED hide-a-way:
All LED HIDEAWAY comes standard with 9'' of cable to wire from the front of a vehicle to the back.
RED: +V connect to +V through an ON/OFF switch. The use of a fuse located close to the voltage source is recommended.
BLACK: -ground Connect to Ground vehicle chassis
YELLOW: connect all YELLOW wires for synchronization
BLUE: touch to ground for 1 second to scroll through patterns
